Powerful single tower with 210W TDP

8230-head
8231-head
8232-head
8233-head
8234-head
8235-head
8236-head
8237-head
8238-head
8239-head
8240-head
8241-head
8242-head
8243-head
8244-head

Product description

German development and quality standards, a completely matt black coated heatsink paired with the multiple award-winning Wing Boost 3 ARGB fan: The Dolomit offers enough power reserves to efficiently cool even the most demanding systems.

further informations

Main features

  • Tower cooler with 6x 6mm heatpipes and 210W TDPAirflow-optimised finsAsymmetrical design of the heat sink for almost 100% RAM compatibilitySolid cover made from powder-coated aluminium6 high-performance copper heatpipesNickel-plated solid copper base plateMultiple award-winning Wing Boost 3 ARGB fanRockMount3 mounting systemGerman development and quality standardsThermal Grizzly high-performance thermal compound

Specifications of the cooler

Article number84000000183
Dimension126 mm x 86 mm x 154 mm
Operating voltage12 VDC
Weight935 g
Heatpipes6 x 6 mm
FinsAluminium
Base plateCopper
Compatibility AMDAM5, AM4
Intel compatibility1700 (UpgradeKit), 1200, 115X, 20XX
Thermally conductive pasteThermal Grizzly Hydronaut

Fan specification

Dimension120 mm x 120 mm x 25 mm
Operating voltage12 VDC
Voltage range7 - 13.2 VDC
WarehouseHydraulic bearing
Fan connection4-pin pwm
Air flow rate92.6 m³/h
produkt:ledanschluss3-Pin ARGB
produkt:ledspannung5 V
produkt:ledeingangsstrom0.57 A

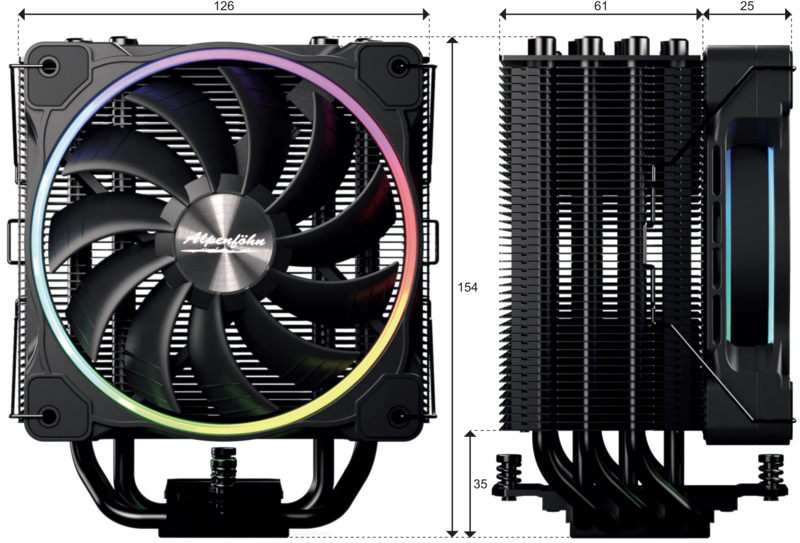

Dimensions in mm


Description

High-end heatpipes & copper base plate

The 6 high-end heatpipes have a very large connection to the nickel-plated copper base plate and can therefore optimally absorb the waste heat from the CPU. As a result, the heat pipes transport the waste heat from the processor quickly and efficiently to the large heat sink.

Black design

The large heat sink is completely black and the stylish top fin rounds off the whole thing. All mounting parts are also black.

Asymmetrical heat sink

The asymmetrical design of the Dolomites allows maximum freedom in the selection of RAM modules. No matter how high the heatspreader of the module may be - it fits easily!
100% RAM compatibility on 1200, 115X, AM5 and AM4 sockets.

Wing Boost 3 ARGB

With 16.8 million colours, the Wing Boost 3 ARGB offers numerous possibilities for setting the case in a unique light. The addressable RGB LED lighting is integrated in the fan frame and casts a light onto the impeller and shines stylishly outwards.

Expandable fan assembly

Four fan brackets are included for even more performance. This allows you to easily mount an additional 120 mm fan on the back of the heat sink and thus increase the cooling performance even further.

Thermal paste

With its excellent thermal conductivity, the Thermal Grizzly Hydronaut can also be used for overclocking. Advantages: No hardening, silicone-free and not electrically conductive.

German engineering

The intelligent use of materials and the new Rock Mount 3 mounting system creates the perfect balance between performance and compatibility.

Compatibility

The mounting material included in the scope of delivery provides a secure hold on the sockets:
Intel® LGA: 1700 (UpgradeKit), 1200, 1150, 1151, 1155, 1156, 2066, 2011-v3, 2011
AMD: AM5, AM4

Awards

tpc hr
"With the three new Dolomit coolers, Alpenföhn presents very strong competition for the Dark Rock range from be quiet in one go! Compared to the two smaller Dark Rock coolers, the Dolomit Advanced and Dolomit Premium in particular offer better performance, easier installation, space for high RAM (Dark Rock 4) and also have an optional ARGB fan, which you can simply leave out if required. This is good news for RGB fans in particular, as many air coolers are still stuck in the "pre-RGB age". All Dolomit models also come in a discreet black design and therefore fit in perfectly with most black mainboards. In terms of volume at maximum speed, the be quiet! models are a tick quieter in terms of measurements, as particularly quiet fans are the manufacturer's hobbyhorse. In practice, however, it is quite difficult to distinguish between the powerful models as they are not too far apart. If you reduce the fan speed, the differences become even smaller. The small Dolomit takes on an interesting special role in the new portfolio, it is compact, offers no RGB, but still offers space for high RAM, simple installation and good cooling performance, but is clearly audible at maximum speed, which can be adjusted via the fan curve. In terms of cooling performance, the small Dolomit also has nothing to hide and performs well, which may be of particular interest to owners of small cases with a low budget. With the new Dolomit series, Alpenföhn is launching a powerful and visually appealing new cooler series. Especially in combination with the Wing Boost 3 ARGB fans, the two larger models deliver an almost unrivalled look and are also affordable thanks to the restrained pricing policy."

Further information on the award
gz
"The new Alpenföhn Dolomit Premium leaves a very good impression on our editorial team. The clean build quality, the secure mounting system and the very good performance speak in favour of the tower cooler. The supplied PWM fan offers a great compromise between performance and volume. The attractive and fully customisable lighting (fan) is also very appealing. Last but not least, the price of just under 60 euros is extremely fair. We couldn't find any serious points of criticism."

Further information on the award
jarafi
"To put it in a nutshell, the Dolomites are very easy to install, offer space for high RAM, are black, have a high-quality finish, the two larger ones have RGB and they don't need to hide in terms of cooling performance either. The be quiet! fans are only better in terms of volume, although the small Dolomit is a little further behind here with its high maximum speed, although the fan can also be turned down. However, the latter is particularly interesting for compact systems. In conclusion, it can be said that the new Dolomit coolers from Alpenföhn don't need to hide from the competition from be quiet!"

Further information on the award
myc da
"With the Dolomit series, Alpenföhn has added a new cooler series to its Premium Line, which also aims to offer high-quality and powerful coolers. This is exactly where the new Dolomit Premium comes in, as the tower cooler not only has very compact dimensions, which means it offers the best possible compatibility with memories with high heat sinks, but can also be used in most gaming systems. Alpenföhn has given the cooler a discreet yet stylish design to suit this area of application, which has been combined with a very good ARGB fan. Where there is unfortunately no ARGB controller included in the scope of delivery and you are therefore dependent on a compatible mainboard or an optional control unit*, the fan in combination with the high number of cooling fins and the six cleanly processed heatpipes ensures good and at the same time pleasantly quiet cooling of the CPU used."

Further information on the award
